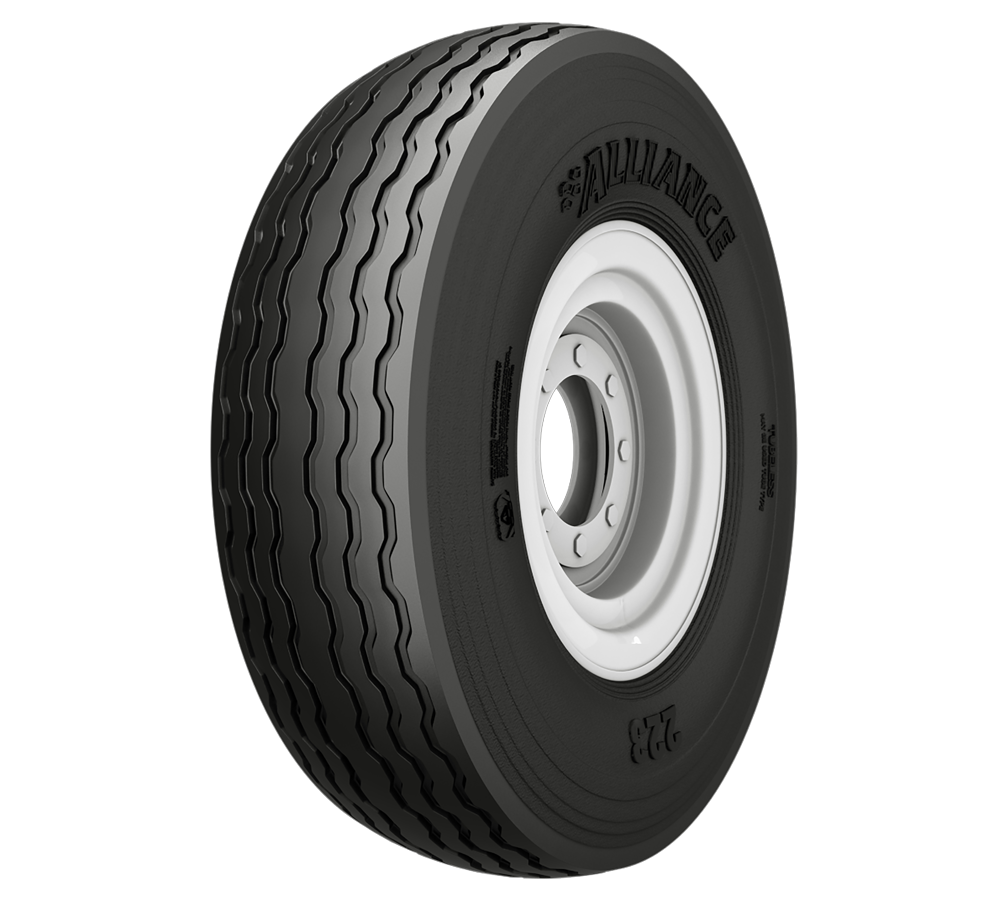

9.00-13 12 PR ALLIANCE 223 123A8/120B I-1 TT

Description

The Alliance 223 is designed for agricultural implements and trailers working under demanding conditions. The heavy-duty casing and construction enables a high load-bearing and excellent durability. The rib I-1 tread pattern also provides for good handling on road surfaces and soil protection when used in agricultural environments.

Features

  • Implement bias tyre for towed equipment.
  • Heavy duty casing and construction.
  • Off-road and on-road capability.

Specification

Application
IMPLEMENT
Size
9.00-13
Brand
ALLIANCE
Pattern
223
Load/Speed Index
123A8/120B
Ply Rating
12
TT/TL
TT
Construction
BIAS
Nominal Section Width
9.00
Rim
13
TRA
I-1
Recommended Rim
5.50F
Section Width
236 mm
Overall Diameter
780 mm
Static Load Radius
354 mm
Rolling Circumference
2310 mm
Tread Depth
7.00 mm
Max Load (KG)/Speed (KM/H) 1
1550/40
Max Load (KG)/Speed (KM/H) 2
1400/50
Inflation Pressure Bar
3.10
ECE 106
Yes
Warranty
7 YEARS
